Easy CG is a comprehensive software package that enables TV channels to display their graphics instantly on air without compromise in quality or flexibility. It is perfectly designed for news, weather reports, business and music channels or for any other operation that wants to brand their channel with easy, fast and eye-catching graphics. Character Generator Plus gives you additional features that further enhance the capabilities of the system.

• SD, HD, Ultra HD (4K) Outputs
Provides UHD key and fill output, HD, SD key, fill output beside internal pass through.

• Live Graphic Overlays on the SDI Signal
Live graphic overlays on the SDI signal as internal pass-through character generator.

• Key and Fill Outputs
Provides CG key and CG fill outputs as source of vision mixer DSK input.

• Multi-Layer CG
Multi-layer live character generator. Allows to put unlimited layer graphics on screen.

• De-Interlacing and Anti-Flicker Display Guarantee the Correct Output of Images and Live Video
De-interlacing and anti-flicker display guarantee the correct output of images and live video.

• Quickly finds Project Meta-Data Entries during a Live Event
Quickly finds project meta-data entries during a live event.

• Online Text Effects
Online text effects.

• Easy CG Plus (Optional)
Template for news ticker preparation with timeline. Collaborative workflow with multiple users. Live weather forecast visualization.

• Pre-Multiplied Key or Straight Alpha Selections
Pre-multiplied key or straight alpha selections.

GPU Based Multi-Layered Live Graphics
A GPU based easy to use live graphics application. The GPU based rendering engine supports SD/HD/4K. With 24 bit (TrueColor) and an 8-bit alpha channel (256 transparency levels). De-interlacing and anti-flicker display options, Antialiasing for true-type fonts and anisotropic filtering (AF) for 3D images. By using the GPU, it guarantees the correct outputs of images and live video.

Up to 16 Live Video Input
For a live operation to have the ability to use mixed sources with graphics is a very important feature for a live show as PIP. Easy CG provides 16 live inputs and unlimited file inputs. With the help of a user-friendly GUI, operators can prepare templates and use them very quickly in live operations.

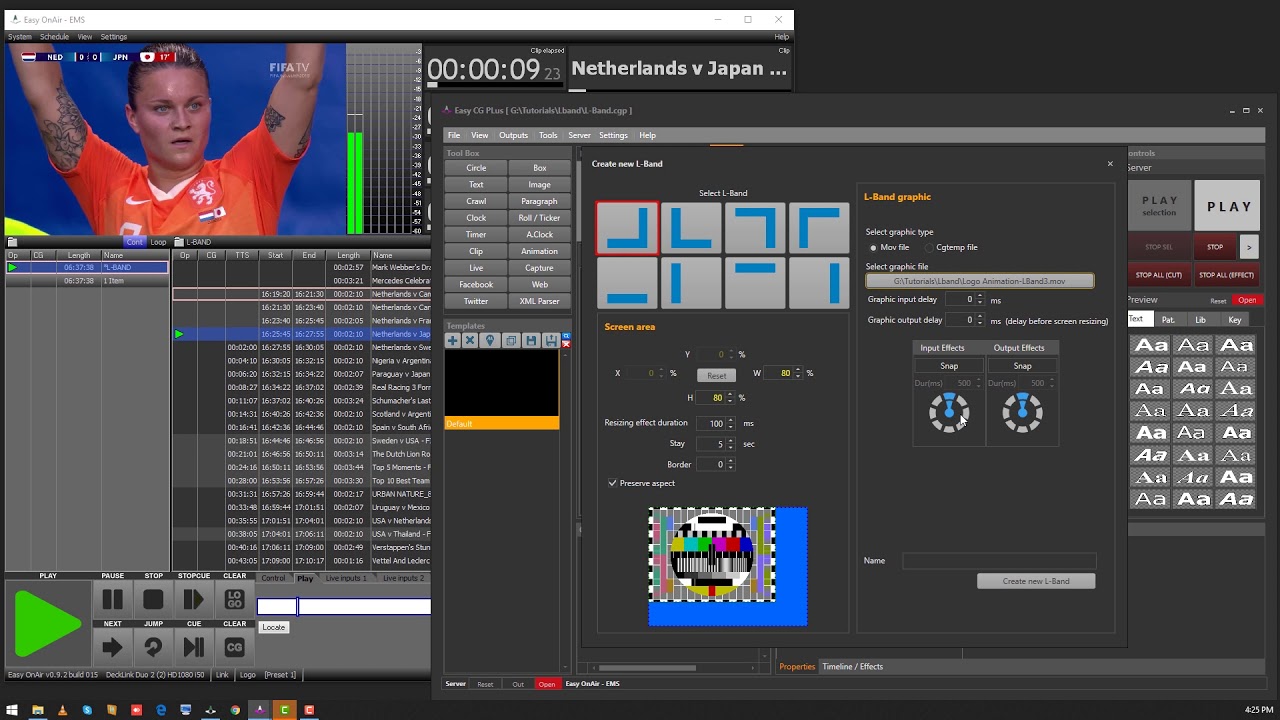

User Friendly GUI
Easy CG is instantly available. Its user-friendly interface helps operators create templates and instantly use them on-air. Preparation and navigation of the prepared templates and sending them to be over-layed on the video is done almost instantaneously.

Integrated Social Media
Social media has very complex operations, selecting and broadcasting processes take time and are difficult to manage. Easy CG provides a useful fully integrated social media tool. Users can design their template, select the desired messages and broadcast them immediately.

Supported TV formats
SD, HD, 4K Internal & External (DSK) Mode
• Ultra High Definition up to 60fps
• High Definition 1080i, 720p
• Standard Definition PAL and NTSC

Supported Picture Formats
• JPEG, PNG, GIF, TIFF, BMP and TARGA Images

Supported Container/File Formats
• MXF (.mxf)
• MPEG2-PS, MPEG2-TS (.mpg, .mpeg, .ts, .m2p, . m2v, . m2t, . m2ts,)
• Windows Media Video (.wmv)
• AVI (Uncompressed 8bit/10bit) (.avi)
• Matroska/WebM (.mkv)
• WAVE/WAV (.wav)
• QuickTime (.mov)
• MP4 (.mp4, .m4a, .m4v)
• FLV (with H.264 and AAC codecs) (.flv, .f4v)
